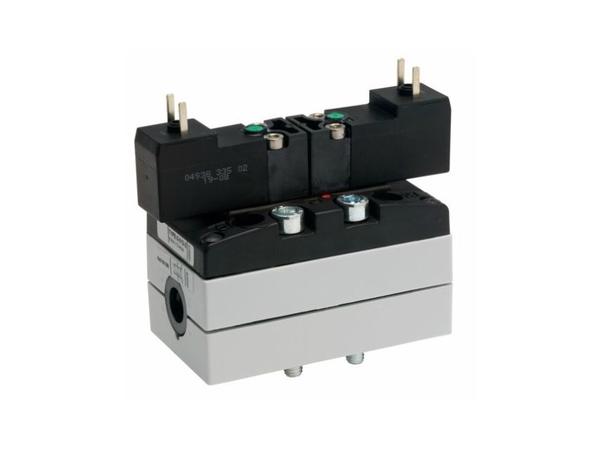

• Compressed air connection output Base plate ISO 5599-1
• Electrical connection Plug, ISO 15217, form C
• Manual override without detent
• Electrically Operated
• Version; Spool valve
• Pilot; External
• Sealing principle; Soft sealing
• Blocking principle; Single base plate principle
• Connection type; Plate connection
• Standards; ISO 5599-1, ISO 1
• Working pressure; min./max. 0 ... 8 bar
• Control pressure; min./max. 3,5 ... 8 bar
• Ambient temperature; min./max. -10 ... 50 °C
• Medium temperature; min./max. -10 ... 50 °C
• Medium; Compressed air
• Max. particle size; 50 µm
• Oil content of compressed air 0 ... 5 mg/m³
• Nominal flow; Qn 950 l/min
• Flow conductance; C 3,2 l/(s*bar)
• Protection class with connection; IP65
• Duty cycle; 100 %
• Typ. switch-on time; 15 ms
• Typ. switch-off time; 22 ms
• Mounting screw with hexagon socket
• Mounting screw tightening torque; 2 Nm
• Weight 0,22 kg
• Voltage tolerance; -10% / +10%
• Power consumption; 2W

The min. control pressure must be adhered to, since otherwise faulty switching and valve failure may result!
The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C .
The oil content of compressed air must remain constant during the life cycle.

Connection 12 must be connected with atmospheres, The valve must be supplied with compressed air via ports 3 and 5, Nominal flow Qn at 6 bar and Δp = 1 bar
